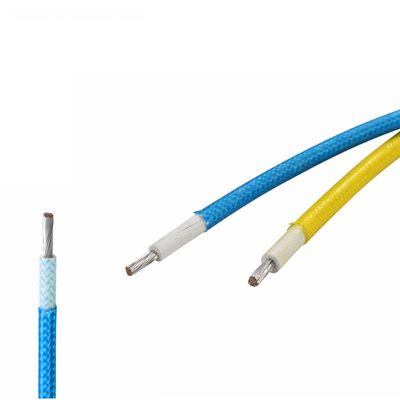

Heat-Resistant UL3122 Silicone Insulated Copper Wire with 200C Rated Temperature and 300V Voltage for Home Appliances in 305 Meter Rolls
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Material conductor | Cobre | Material de aislamiento | Goma |
|---|---|---|---|
| Voltaje nominal | 300 V | Tipo de conductor | varado |
| Forma | Redondo | Calificación de temperatura | 200c |
| Composición del conductor | Cobre estampado | Tipo de aislamiento | Goma de silicona |
| Longitud del paquete | 305 metros/rollo | Resistencia del conductor máximo | 143.00 Ω/km |
| Diámetro del conductor | 0,48 milímetros | Espesor de aislamiento | 0,60 milímetros |
| Diámetro de aislamiento | 1.68 mm | Longitud de la unidad | 305/1000 m/ft |
| Tamaño de AWG | 26 | ||
| Resaltar | 200C Rated Temperature Silicone Insulated Wire,300V Rated Voltage Copper Wire,305 Meter/Roll Package UL3122 Wire |
||
Descripción de producto

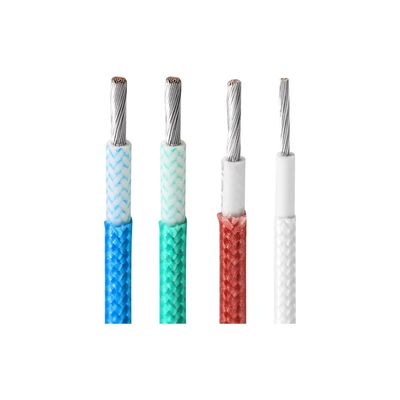

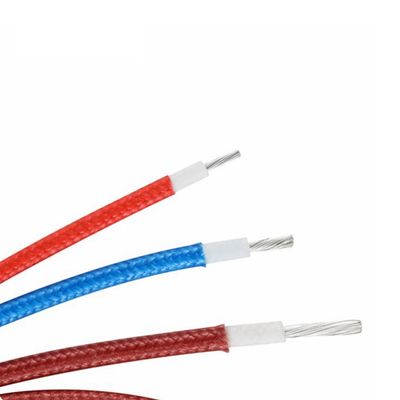

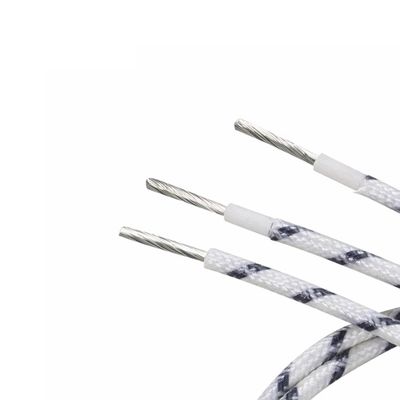

Heat-Resistant Wire UL3122 Silicone Glass Fiber Braided Copper Wire for Home Appliance
Product Description
Specifications
| Conductor | Insulation | Max. Cond. Resistance (Ω/KM) | Unit length (M)(Ft) | |||
|---|---|---|---|---|---|---|
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | ||
| 26 | 7/0.16 | 0.48 | 0.60 | 1.68 | 143.00 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.60 | 1.81 | 89.30 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.60 | 1.97 | 56.40 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.60 | 2.14 | 35.20 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.60 | 2.39 | 22.20 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.60 | 2.69 | 14.00 | 305/1000 |
| 24 | 1/0.50 | 0.5 | 0.65 | 1.80 | 89.30 | 305/1000 |
| 22 | 1/0.65 | 0.65 | 0.65 | 1.95 | 56.40 | 305/1000 |
| 20 | 1/0.81 | 0.81 | 0.65 | 2.11 | 35.20 | 305/1000 |
| 18 | 1/1.02 | 1.02 | 0.65 | 2.32 | 22.20 | 305/1000 |
| 16 | 1/1.20 | 1.2 | 0.65 | 2.50 | 14.00 | 305/1000 |
| 24 | 11/0.16 | 0.61 | 0.60 | 1.81 | 89.30 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 0.60 | 1.96 | 56.40 | 305/1000 |
| 20 | 26/0.16 | 0.94 | 0.60 | 2.14 | 35.20 | 305/1000 |
| 18 | 41/0.16 | 1.18 | 0.60 | 2.38 | 22.20 | 305/1000 |
| 16 | 26/0.254 | 1.49 | 0.60 | 2.69 | 14.00 | 305/1000 |
| 0.30m㎡ | 12/0.18 | 0.71 | 0.60 | 1.91 | 59.78 | 305/1000 |
| 0.50m㎡ | 20/0.18 | 0.92 | 0.60 | 2.12 | 40.10 | 305/1000 |
| 0.75m㎡ | 30/0.18 | 1.13 | 0.60 | 2.33 | 26.70 | 305/1000 |
| 1.00m㎡ | 40/0.18 | 1.31 | 0.60 | 2.51 | 20.00 | 305/1000 |
| 1.25m㎡ | 50/0.18 | 1.46 | 0.60 | 2.66 | 14.35 | 305/1000 |
Product Features
- Place of Origin: China, Guangdong
- Type: Insulated wire
- Application: Home appliance, lighting, heater, motor, generator, industrial power
- Conductor Material: Copper (tinned)
- Conductor Type: Stranded
- Insulation Material: Silicone Rubber
- Color: Customizable
- Usage: High temperature electric furnace heating
- Rated Voltage: 300V
- Rated Temperature: 200°C
- Package: 305 meter/roll
- Certification: ROHS, CCC, VDE, ISO9001:2008
Company Profile
Shenzhen Mysun Insulation Materials Co., Ltd. is a comprehensive enterprise integrating manufacture, distribution and trade. We specialize in producing high temperature wires for home appliances, electronic products, lighting, medical units, communication and office equipment with connecting wiring harness and processing service. Our wires have passed UL, CUL, VDE and SGS certifications. Our company operates under ISO9001 international standard management system. We adhere to the principles of "group, service, innovation and responsibility" with a quality policy of "full participation, prevention first, persisting improvement and satisfying service".

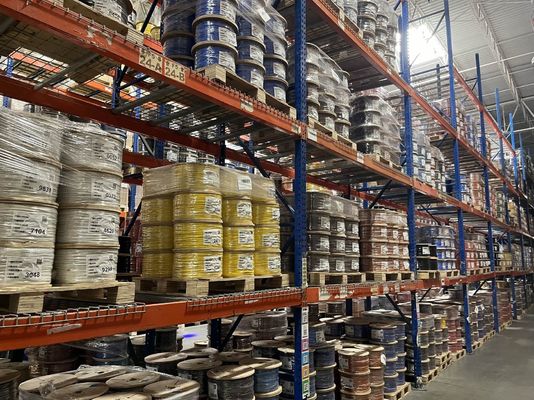

Packing

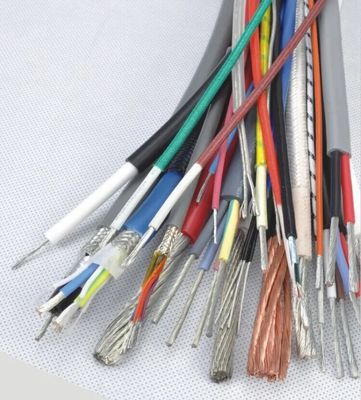

Application
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08.00). We have public holidays during May 1-3, October 1-7 and Chinese New Year. Please email us during holidays with any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. The buyer should bear all shipping costs.
What are your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
What is the lead time?
Sample lead time is typically 7 days after payment confirmation.
