UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C

  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Lugar de origen Cantón, China
Nombre de la marca MYSUN
Número de modelo UL20225
Cantidad de orden mínima 3050

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material conductor Cobre estampado Opciones de diámetro 2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20
Material de aislamiento PFA Tensión nominal 600V
Tipo de conductor Sólido Forma Redondo
Calificación de temperatura 250 °C Tipo Aislado
Material de la trenza Cobre niquelado Espesor nominal 0.30m m
Grosor de la trenza 0,50 mm, 0,60 mm, 0,70 mm, 0,80 mm Grosor exterior de la prenda 0.51m m
Construcción 19/0,15, 19/0,19, 19/0,235 Construcción trenzada 16X6X012, 16X7X012, 24X6X0.12, 24X8X0.12, 24X10X0.12
Opciones de longitud 305 m/1000 pies
Resaltar

Nickel Plated Copper Braid PFA Wire

,

High Temperature PFA Wire

,

UL20225 Multi Core Wire
Deja un mensaje
Descripción de producto

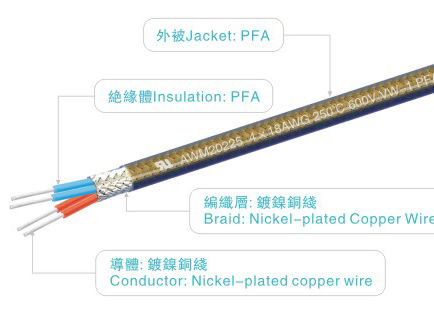

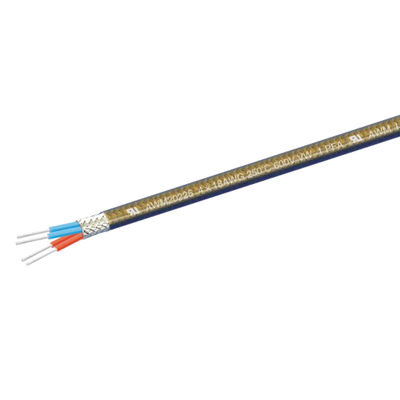

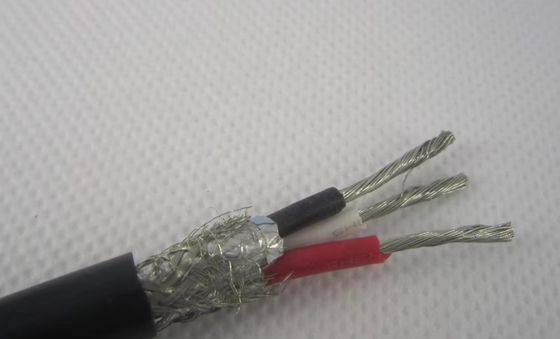

UL20225 PFA Multi Core Wire 600V 250°C Nickel Plated Copper Braid 2X18 - 7X22 High Temperature PFA Wire for UAV Robot
Premium PFA Wire Supplier for Industrial Applications

Supplies Fortune 500 Companies - Top PFA Wire Supplier In China.

UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 0 UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 1
Technical Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter Range (mm)
2X2219/0.150.750.3016X6X0120.504.50-5.50
2X2019/0.190.900.3016X6X0120.505.00-6.00
2X1819/0.2351.170.3016X6X0120.505.30-6.30
3X2219/0.150.750.3016X6X0120.504.50-5.50
3X2019/0.190.900.3016X6X0120.505.00-6.00
3X1819/0.2351.170.3016X7X0120.505.30-6.30
4X2219/0.150.750.3016X7X0120.604.50-6.00
4X2019/0.190.900.3016X7X0120.605.00-6.50
4X1819/0.2351.170.3024X6X0.120.605.30-7.00
5X2219/0.150.750.3016X7X0120.605.00-6.50
5X2019/0.190.900.3016X7X0120.605.50-7.00
5X1819/0.2351.170.3024X6X0.120.606.00-7.50
6X2219/0.150.750.3016X8X0120.605.5-7.00
6X2019/0.190.900.3016X8X0120.606.00-7.50
6X1819/0.2351.170.3024X8X0.120.706.50-8.00
7X2219/0.150.750.3016X8X0120.706.00-7.50
7X2019/0.190.900.3016X8X0120.706.50-8.00
7X1819/0.2351.170.3024X10X0.120.807.00-8.50
Company Profile
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 2 UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 3
Our Product Range
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 4
Applications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 5
Global Clients
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 6
Industry Exhibitions
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 7
Certifications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquartered in Shenzhen with production bases in Dongguan and Jingzhou, China.
  • What We Provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Payment options: T/T, L/C, PayPal, Western Union, Cash.
