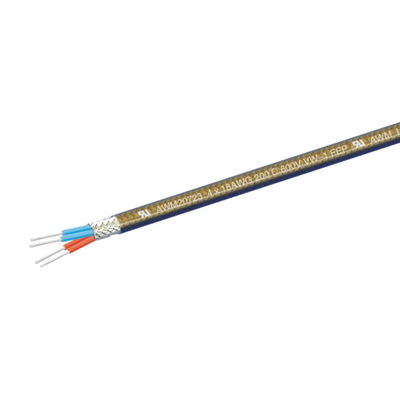

UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment

  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
Lugar de origen Cantón, China
Nombre de la marca MYSUN
Número de modelo UL20723
Cantidad de orden mínima 3050

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material conductor Cobre estampado Opciones de diámetro 2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20
Material de aislamiento El FEP Tensión nominal 600V
Tipo de conductor Sólido Forma Redondo
Calificación de temperatura 200℃ Tipo Aislado
Requisitos básicos Cable FEP de 2 núcleos o más 16-4/0 AWG Construcción trenzada 16X6X012, 16X7X012, 24X6X0.12, 24X8X0.12, 24X10X0.12
Grosor de la trenza 0,50 mm, 0,60 mm, 0,70 mm, 0,80 mm Grosor exterior de la prenda 0.35 mm
Espesor nominal 0.50m m Tamaño de AWG 22, 20, 18
Construcción de conductores 19/0,15 mm, 19/0,19 mm, 19/0,235 mm
Resaltar

UL20723 FEP Wire

,

Multi Core FEP Wire

,

FEP Insulation Wire
Deja un mensaje
Descripción de producto

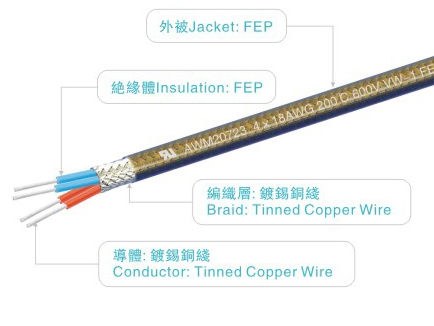

UL20723 FEP Multi Core Wire 600V 200°C Tinned Copper Braid 2X18 - 7X22 High Temperature FEP Wire for UAV Robot
Supplies Fortune 500 Companies | Top PFA Wire Supplier In China
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 0 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 1
Specification
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter (mm)
2X2219/0.150.750.5016X6X0120.354.50-5.50
2X2019/0.190.900.5016X6X0120.355.00-6.00
2X1819/0.2351.170.5016X6X0120.355.30-6.30
3X2219/0.150.750.5016X6X0120.354.50-5.50
3X2019/0.190.900.5016X6X0120.355.00-6.00
3X1819/0.2351.170.5016X6X0120.355.30-6.30
4X2219/0.150.750.5016X7X0120.354.50-6.00
4X2019/0.190.900.5016X7X0120.355.00-6.50
4X1819/0.2351.170.5024X6X0.120.355.30-7.00
5X2219/0.150.750.5016X7X0120.355.00-6.50
5X2019/0.190.900.5016X7X0120.355.50-7.00
5X1819/0.2351.170.5024X6X0.120.356.00-7.50
6X2219/0.150.750.5016X8X0120.355.5-7.00
6X2019/0.190.900.5016X8X0120.356.00-7.50
6X1819/0.2351.170.5024X8X0.120.356.50-8.00
7X2219/0.150.750.5016X8X0120.356.00-7.50
7X2019/0.190.900.5016X8X0120.356.50-8.00
7X1819/0.2351.170.5024X10X0.120.357.00-8.50
Company Profile
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 2 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 3
Our Products
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 4
Application
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 5
Our Overseas Clients
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 6
Exhibition
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 7
Certifications
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 8
FAQ
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarters is located in Shenzhen, Guangdong, China, with production bases in Dongguan, Guangdong and Jingzhou, Hubei, China.
2. What Can We Provide?
We provide high-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
3. Why Choose Us?
  • Free samples available
  • Competitive pricing
  • High quality standards
  • Customized services
4. What Certifications Do We Have?
UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
5. What Services Can We Provide?
Accepted Delivery Terms:
FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
Accepted Payment Currency:
USD, EUR, CNY
Accepted Payment Type:
T/T, L/C, PayPal, Western Union, Cash
