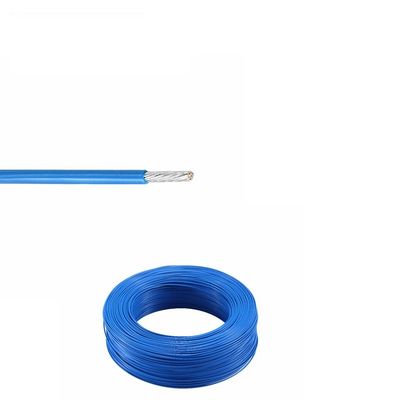

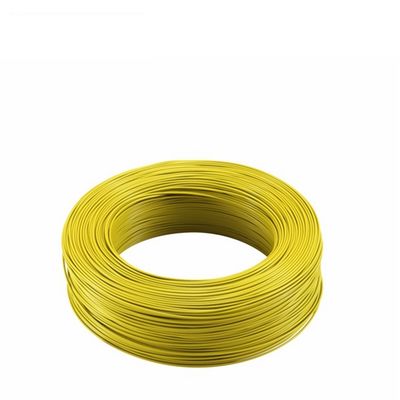

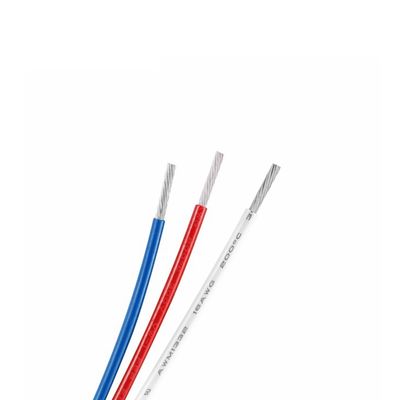

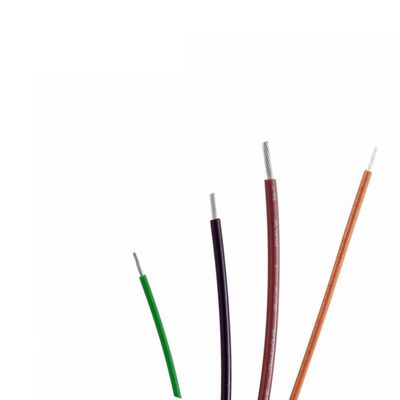

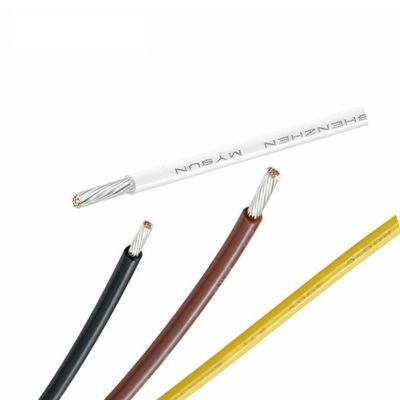

UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications

  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Lugar de origen Cantón, China
Nombre de la marca MYSUN
Número de modelo UL10468
Cantidad de orden mínima 3050

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material conductor Cobre estampado Diámetro 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG
Material de aislamiento Goma Tensión nominal 300 V
Tipo de conductor Sólido Forma Redondo
Temperatura 250°C, 150 o 200°C Voltaje 600V
Aislamiento ETFE Conductor Cobre estañado/cobre plateado
Longitud de la unidad 305/1000 Resistencia del conductor máximo 5,64 Ω/KM (12 AWG), 8,96 Ω/KM (14 AWG), 14,6 Ω/KM (16 AWG)
Espesor nominal 0,350 mm (12 AWG), 0,300 mm (14 AWG), 0,330 mm (16 AWG) Diámetro de aislamiento 3,05 mm (12 AWG), 2,55 mm (14 AWG), 2,16 mm (16 AWG)
Construcción 19/0,475 (12 AWG), 19/0,37 (14 AWG), 19/0,30 (16 AWG)
Resaltar

ETFE Insulation Wire

,

UL758 Standard Wire

,

Head Sensor ETFE Wire
Deja un mensaje
Descripción de producto
UL11628 ETFE Wire 12AWG-26AWG 600V 200°C High Temperature Cable
Premium ETFE Wire Supplier for Fortune 500 Companies
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 0 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 1
Technical Specifications
Size (AWG) Conductor Construction Conductor Diameter (mm) Insulation Thickness (mm) Overall Diameter (mm) Max Conductor Resistance (Ω/KM) Unit Length (M/Ft)
30 7/0.10 0.30 0.270 0.84 381 610/2000
28 7/0.127 0.36 0.270 0.90 239 610/2000
26 19/0.10 0.48 0.270 1.02 150 610/2000
24 19/0.12 0.60 0.270 1.14 94.2 610/2000
22 19/0.15 0.75 0.300 1.35 59.4 305/1000
20 19/0.19 0.95 0.330 1.61 36.7 305/1000
18 19/0.235 1.17 0.330 1.83 23.2 305/1000
16 19/0.30 1.50 0.330 2.16 14.6 305/1000
14 19/0.37 1.85 0.300 2.55 8.96 305/1000
12 19/0.475 2.35 0.350 3.05 5.64 305/1000
Click to Contact Us for the Best Quote

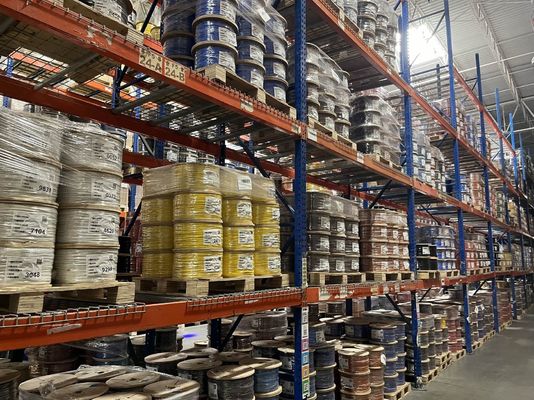

Company Profile
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 2 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 3
Our Product Range
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 4
Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 5
Our Global Clients
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 6
Industry Exhibitions
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 7
Certifications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 8
Frequently Asked Questions
  • Who are we? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What we provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why choose us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
