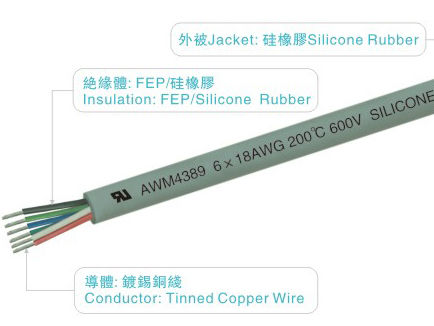

UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor

  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
  • UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor
Lugar de origen Cantón, China
Nombre de la marca MYSUN
Número de modelo UL1858
Cantidad de orden mínima 3050

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material conductor Cobre estampado Opciones de diámetro 2X22AWG, 2X20AWG, 2X18AWG, 3X22AWG, 3X20AWG, 3X18AWG, 4X20AWG, 4X18AWG
Material de aislamiento Goma Tensión nominal 600 V
Tipo de conductor Sólido Forma Redondo
Calificación de temperatura 200 ° C Tipo de aislamiento silicona
Opciones de conductor Cobre estañado/cobre plateado Espesor nominal 0,33 milímetros
Grosor de la prenda exterior 1.00 mm Rango de diámetro 4,5-8,00 mm
Construcción 19 hilos por conductor Diámetro de hilo 0,15-0,235 milímetros
Longitud 305 m / 1000 pies
Resaltar

Silicone Rubber Jacket FEP Wire

,

Industrial Power Silicone Insulated Wire

,

Tinned Copper High Temperature Wire
Deja un mensaje
Descripción de producto
UL4389 FEP Wire 600V 200°C Silicone Rubber Jacket High Temperature Wire for Industrial Power
Supplies Fortune 500 Companies - Top PFA Wire Supplier In China
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 0 UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 1

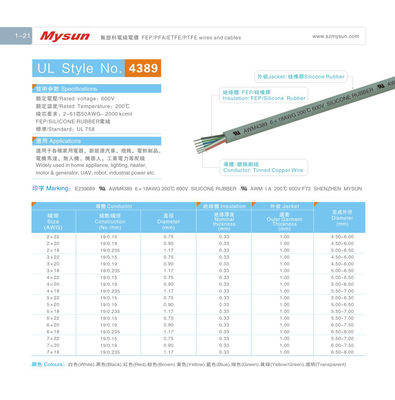

Product Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Out Garment Thickness (mm) Diameter (mm)
2x22 19/0.15 0.75 0.33 1.00 4.5-6.00
2x20 19/0.19 0.90 0.33 1.00 4.5-6.00
2x18 19/0.235 1.17 0.33 1.00 5.00-6.50
3x22 19/0.15 0.75 0.33 1.00 4.5-6.00
3x20 19/0.19 0.90 0.33 1.00 4.5-6.00
3x18 19/0.235 1.17 0.33 1.00 5.00-6.50
4x22 19/0.15 0.75 0.33 1.00 5.0-6.50
4x20 19/0.19 0.90 0.33 1.00 5.0-6.50
4x18 19/0.235 1.17 0.33 1.00 5.50-7.00
5x22 19/0.15 0.75 0.33 1.00 5.0-6.50
5x20 19/0.19 0.90 0.33 1.00 5.0-6.50
5x18 19/0.235 1.17 0.33 1.00 5.50-7.00
6x22 19/0.15 0.75 0.33 1.00 5.5-7.00
6x20 19/0.19 0.90 0.33 1.00 6.00-7.50
6x18 19/0.235 1.17 0.33 1.00 6.50-8.00
7x22 19/0.15 0.75 0.33 1.00 5.5-7.00
7x20 19/0.19 0.90 0.33 1.00 6.00-7.50
7x18 19/0.235 1.17 0.33 1.00 6.50-8.00
Company Profile
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 2 UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 3
Our Products
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 4
Applications
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 5
Our Overseas Clients
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 6
Exhibition
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 7
Certifications
UL4389 FEP Wire with Silicone Rubber Jacket for Industrial Power and Tinned Copper Conductor 8
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
Free Sample
Competitive Price
High Quality Standard
Customized Service
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms:
FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
Accepted Payment Currency:
USD, EUR, CNY
Accepted Payment Type:
T/T, L/C, PayPal, Western Union, Cash
