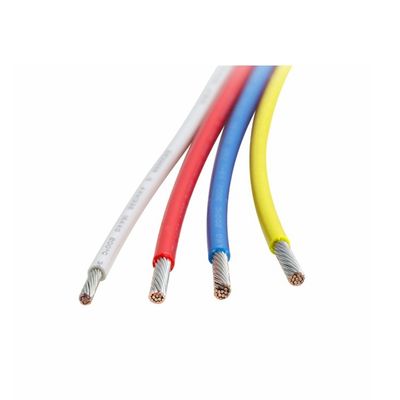

UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment

  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
  • UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment
Lugar de origen Cantón, China
Nombre de la marca MYSUN
Número de modelo UL1858
Cantidad de orden mínima 3050

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material conductor Cobre estampado Diámetro 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG
Material de aislamiento El FEP Tensión nominal 30V
Tipo de conductor Sólido Forma Redondo
Temperatura 105°C Tipo Aislado
Longitud de la unidad 305/1000 Resistencia del conductor máximo 14,6 Ω/KM (16 AWG), 23,2 Ω/KM (18 AWG), 36,7 Ω/KM (20 AWG), 59,4 Ω/KM (22 AWG), 94,2 Ω/KM (24 AWG),
Construcción de conductores 19/0,30 (16 AWG), 19/0,235 (18 AWG), 19/0,19 (20 AWG), 19/0,15 (22 AWG), 7/0,20 (24 AWG), 7/0,16 (26 Espesor de aislamiento 0,300 mm (16-22 AWG), 0,350 mm (14 AWG)
Diámetro de aislamiento 2,09 mm (16 AWG), 1,79 mm (18 AWG), 1,52 mm (20 AWG), 1,37 mm (22 AWG), 1,21 mm (24 AWG), 1,08 mm (2 Diámetro del conductor 1,49 mm (16 AWG), 1,19 mm (18 AWG), 0,92 mm (20 AWG), 0,77 mm (22 AWG), 0,61 mm (24 AWG), 0,48 mm (2
Estándar UL758
Resaltar

30V Rated Voltage FEP Wire

,

105°C Temperature Rating UL1927 Wire

,

Class 2 Circuits Tefzel Insulated Wire
Deja un mensaje
Descripción de producto
UL1927 FEP Wire 30V 105°C for Use in Class 2 Circuits of Electronic Equipment
Supplies Fortune 500 Companies - Top PFA Wire Supplier in China.
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 0 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 0
Specification
UL1927 UL1330 Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
32 7/0.08 0.24 0.200 0.64 563 610/2000
30 7/0.10 0.30 0.200 0.70 381 610/2000
28 7/0.127 0.38 0.250 0.88 239 610/2000
26 7/0.16 0.48 0.300 1.08 150 610/2000
24 7/0.20 0.61 0.300 1.21 94.2 610/2000
22 19/0.15 0.77 0.300 1.37 59.4 305/1000
20 19/0.19 0.92 0.300 1.52 36.7 305/1000
18 19/0.235 1.19 0.300 1.79 23.2 305/1000
16 19/0.30 1.49 0.300 2.09 14.6 305/1000
14 19/0.37 1.87 0.350 2.57 8.78 305/1000
Click Contact us Get the Best Quote
Company Profile
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 2 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 2 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 4 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 4
Our Products
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 6 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 6
Application
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 8 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 8
Our Overseas Clients
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 10 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 10
Exhibition
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 12 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 12
Certifications
UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 14 UL1927 FEP Wire with 30V Rated Voltage and 105°C Temperature Rating for Class 2 Circuits in Electronic Equipment 14
FAQ
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
