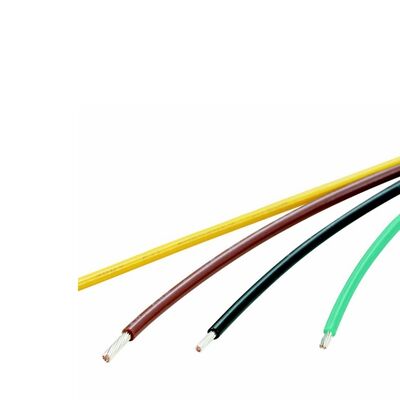

Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications

  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
Lugar de origen Cantón, China
Nombre de la marca MYSUN
Número de modelo V048486 CQC20011252316 E(z)-200/TX/FEP
Cantidad de orden mínima 3050

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material conductor Cobre estampado Diámetro 0,051 mm2, 0,08 mm2, 0,13 mm2, 0,21 mm2, 0,32 mm2, 0,40 mm2, 0,52 mm2, 0,75 mm2, 0,82 mm2, 1,00 mm2,
Material de aislamiento El FEP Tensión nominal 300 V
Tipo de conductor Sólido Forma Redondo
Rango de temperatura 150C, 200℃ Tipo Aislado
Longitud de la unidad 305/1000 Resistencia del conductor máximo 381 Ω/KM, 239 Ω/KM, 150 Ω/KM, 94,2 Ω/KM, 59,4 Ω/KM, 46,6 Ω/KM, 37,4 Ω/KM, 24,8 Ω/KM, 23,5 Ω/KM, 18,7
Espesor nominal 0,230 mm, 0,380 mm, 0,510 mm Diámetro de aislamiento 0,80 mm, 0,85 mm, 0,95 mm, 1,10 mm, 1,20 mm, 1,35 mm, 1,50 mm, 1,60 mm, 1,95 mm, 2,15 mm, 2,30 mm, 2
Diámetro del conductor 0,30 mm, 0,38 mm, 0,48 mm, 0,60 mm, 0,78 mm, 0,85 mm, 0,96 mm, 1,12 mm, 1,17 mm, 1,35 mm, 1,52 mm, 1 Construcción 7/0,10, 7/0,127, 7/0,16, 19/0,12, 19/0,15, 19/0,17, 19/0,19, 19/0,225, 19/0,235, 19/0,26, 19/0,30, 1
Resaltar

Flame Retardant FEP Wire

,

Nickel Plated Copper FEP Wire

,

UAV Robot Generator Wire
Deja un mensaje
Descripción de producto
Flame Retardant FEP Wire 300V 200°C Nickel Plated Copper
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 0 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 1
Product Specifications
V048486 CQC20011252316 E(z)-200/TX/FEP Wire UL1330
Conductor Insulation Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.230 0.80 381 610/2000
0.08 7/0.127 0.38 0.230 0.85 239 610/2000
0.13 7/0.16 0.48 0.230 0.95 150 305/1000
0.21 19/0.12 0.60 0.230 1.10 94.2 305/1000
0.32 19/0.15 0.78 0.230 1.20 59.4 305/1000
0.40 19/0.17 0.85 0.230 1.35 46.6 305/1000
0.52 19/0.19 0.96 0.230 1.50 37.4 305/1000
0.75 19/0.225 1.12 0.230 1.60 24.8 305/1000
0.82 19/0.235 1.17 0.380 1.95 23.5 305/1000
1.00 19/0.26 1.35 0.380 2.15 18.7 305/1000
1.31 19/0.30 1.52 0.380 2.30 14.7 305/1000
1.50 19/0.32 1.60 0.380 2.40 12.5 305/1000
2.08 19/0.375 1.89 0.380 2.70 9.22 305/1000
2.50 19/0.41 2.08 0.380 2.90 7.47 305/1000
3.31 19/0.475 2.39 0.380 3.20 5.75 100/328
4.00 19/0.52 2.70 0.380 3.50 4.68 100/328
5.26 19/0.60 3.00 0.380 3.80 3.62 100/328
6.00 19/0.64 3.25 0.380 4.00 3.12 100/328
8.37 68/0.40 3.90 0.510 4.95 2.23 100/328
10.00 37/0.59 4.30 0.510 5.35 1.87 100/328
13.30 133/0.36 5.20 0.510 6.25 1.41 100/328
16.00 133/0.393 5.60 0.510 6.65 1.17 100/328
Contact Us for Best Quote
Company Profile
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 2 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 3 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 4 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 5
Our Products
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 6 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 7
Applications
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 8 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 9
Our Overseas Clients
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 10 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 11
Exhibitions
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 12 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 13
Certifications
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 14 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 15
Frequently Asked Questions
1. Who Are We?

We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.

2. What Can We Provide?

We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.

3. Why Choose Us?
  • Free sample
  • Competitive price
  • High quality standard
  • Customized service
4. What Certifications Do We Have?

We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.

5. What Services Can We Provide?

Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.

Accepted Payment Currency: USD, EUR, CNY.

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
