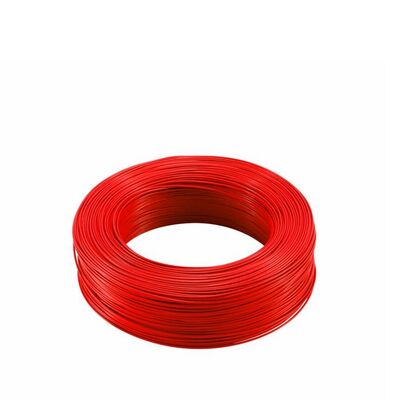

UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications

  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
Lugar de origen Cantón, China
Nombre de la marca MYSUN
Número de modelo UL8298
Cantidad de orden mínima 3050

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material conductor Cobre estampado Diámetro 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG
Material de aislamiento PFA Tensión nominal 450V, 750V
Tipo de conductor Sólido Forma Redondo
Calificación de temperatura 250 ℃ Resistencia del conductor 59,78 Ω/KM (0,34 mm2), 40,1 Ω/KM (0,50 mm2), 26,7 Ω/KM (0,75 mm2), 20 Ω/KM (1,00 mm2), 14,35 Ω/KM (1
Longitud de la unidad 305/1000 m/ft Construcción de conductores 7/0,15 (0,34 mm2), 7/0,19 (0,50 mm2), 19/0,23 (0,75 mm2), 19/0,26 (1,00 mm2), 19/0,29 (1,25 mm2), 19
Espesor de aislamiento 0,305 mm (0,34-1,50 mm2), 0,350 mm (2,00-2,50 mm2) Diámetro del alambre 1,36 mm (0,34 mm2), 1,56 mm (0,50 mm2), 1,78 mm (0,75 mm2), 1,91 mm (1,00 mm2), 2,16 mm (1,25 mm2),
Diámetro del conductor 0,75 mm (0,34 mm2), 0,95 mm (0,50 mm2), 1,17 mm (0,75 mm2), 1,31 mm (1,00 mm2), 1,46 mm (1,25 mm2), Clasificación de voltaje Los demás
Tipo de aislamiento PFA
Resaltar

Solid Conductor PFA Wire

,

Round Shape PFA Wire

,

Medical Equipment PFA Wire
Deja un mensaje
Descripción de producto
UL8298 PFA Wire - High Temperature Sensor Wire
Premium PFA Wire Supplier for Fortune 500 Companies
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 0 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 1
Technical Specifications
UL8298 UL1330 Conductor Insulation Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
Size (mm²) Construction (No.mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
0.34 7/0.15 0.75 0.305 1.36 59.78 610/2000
0.50 7/0.19 0.95 0.305 1.56 40.1 305/1000
0.75 19/0.23 1.17 0.305 1.78 26.7 305/1000
1.00 19/0.26 1.31 0.305 1.91 20 305/1000
1.25 19/0.29 1.46 0.305 2.16 14.35 305/1000
1.50 19/0.32 1.61 0.305 2.31 13.7 305/1000
2.00 19/0.37 1.85 0.350 2.55 8.78 305/1000
2.50 19/0.41 2.06 0.350 2.76 7.16 305/1000
Click Contact us Get the Best Quote
Company Profile
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 2 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 3
Our Product Range
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 4
Applications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 5
Global Clients
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 6
Industry Exhibitions
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 7
Certifications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What We Provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
