2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car

  • 2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car
  • 2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car
  • 2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car
  • 2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car
  • 2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car
  • 2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car
Lugar de origen Cantón, China
Nombre de la marca MYSUN
Certificación UL/CCC/CE/VDE/SA ETC.
Número de modelo UL3512
Cantidad de orden mínima 6100
Datos del producto
Material conductor Cobre Diámetro 2 AWG, 1 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 25 mm2, 35 mm2, 5
Material aislante Silicona Tensión nominal 600V, 1000V, 1500V
Tipo de conductor varado Forma Redondo
Rango de temperatura -80°C ~ +200°C Espesor del aislamiento 0,78 mm, 1,15 mm, 1,52 mm, 2,03 mm
Construcción de conductores Cobre estañado/Personalizar Aislamiento caucho de silicona
Blindaje Opcional Espesor nominal 0,78 mm, 1,15 mm, 1,52 mm, 2,03 mm
Tolerancia del diámetro ±0,1 mm, ±0,2 mm, ±0,3 mm, ±0,4 mm, ±0,5 mm, ±0,6 mm, ±0,7 mm, ±0,8 mm Recuento de hilos 25, 41, 65, 104, 164, 261, 415, 660, 1050, 1320, 1650, 2100, 2648, 3338, 4210, 5309, 6692, 8842, 106
Diámetro de hilo 0,08 mm
Resaltar

2AWG to 10AWG Battery Connection Cable

,

Silicone Insulation Battery Cable

,

M6 M8 M10 Terminals Silicone Wire
Deja un mensaje
Descripción de producto
Battery Connection Cable - UL3512 Super Soft Silicone Wire
Supplies Fortune 500 Companies - Top Silicone Rubber Wire Supplier in China
2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car 0
Technical Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
2625/0.080.480.782.10±0.1
2441/0.080.600.782.20±0.1
2265/0.080.780.782.50±0.1
20104/0.080.950.782.55±0.1
18164/0.081.170.782.80±0.1
16261/0.081.470.783.10±0.1
14415/0.082.100.783.70±0.1
12660/0.082.700.784.30±0.1
101050/0.083.40±0.301.155.50±0.2
91320/0.083.80±0.31.156.10±0.3
81650/0.084.00±0.301.156.30±0.3
72100/0.084.80±0.31.527.90±0.3
62648/0.085.30±0.301.528.30±0.4
53338/0.086.10±0.51.529.20±0.4
44210/0.086.80±0.51.529.90±0.4
35309/0.087.80±0.51.5210.9±0.5
26692/0.088.70±0.51.5211.8±0.5
18842/0.0810.0±0.62.0314.0±0.6
1/010647/0.0811.0±0.702.0315.0±0.6
2/013422/0.0812.3±0.82.0316.3±0.7
Contact Us to Get the Most Cost-effective Quote
Our Products
2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car 1
Applications
2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car 2

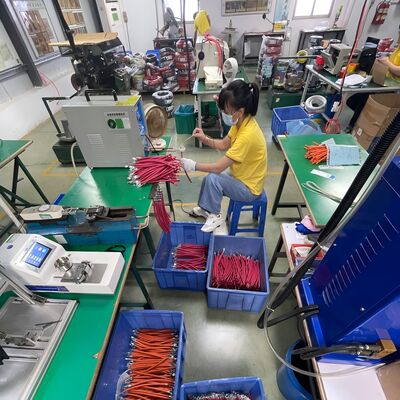

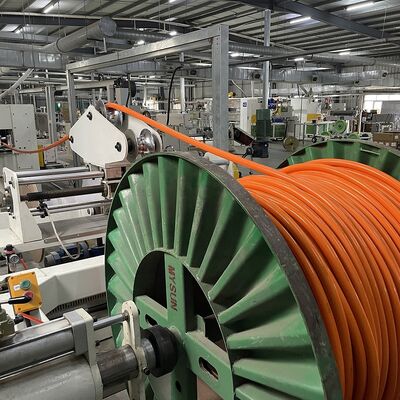

Company Profile
2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car 3 2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car 4
Our Overseas Clients
2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car 5
Exhibition
2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car 6
Certifications
2AWG to 10AWG Battery Connection Cable with Silicone Insulation and M6 M8 M10 Terminals for Automotive Solar RV Car 7
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Headquartered in Shenzhen, Guangdong, China with production bases in Dongguan and Jingzhou.
  • What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
