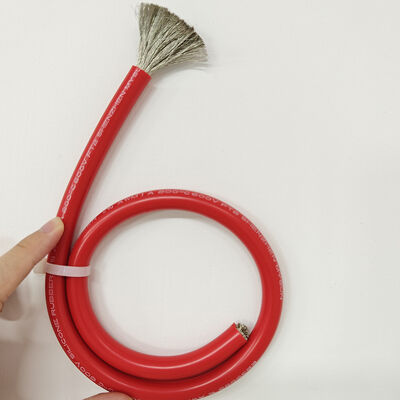

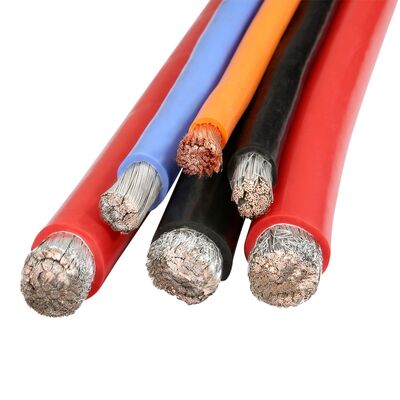

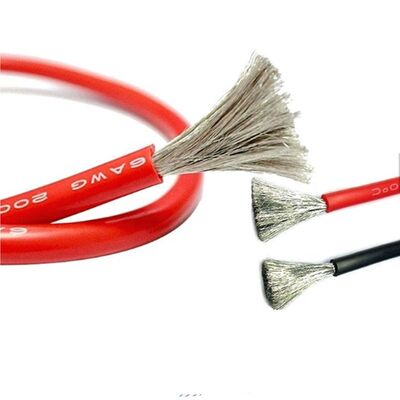

High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
Datos del producto
| Material conductor | Cobre | Diámetro | 2 AWG, 4 AWG, 1 AWG, 6 AWG, 10 AWG, 8 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 2 |
|---|---|---|---|
| Material aislante | Silicona | Tensión nominal | 600 V, 1500 V, 1000 V |
| Tipo de conductor | varado | Temperatura | 200C, 150C |
| Tipo | Aislado | temperatura nominal | 200c |
| Conductor | Alambre estañado | Aislamiento | caucho de silicona |
| Max Resistance | 199,0 Ω/KM (0,15 mm²), 40,1 Ω/KM (0,50 mm²), 24,8 Ω/KM (0,75 mm²), 18,7 Ω/KM (1,00 mm²), 12,5 Ω/KM ( | Longitud de la unidad | 610/2000 M (0,15 mm²), 305/1000 M (0,50 mm², 0,75 mm², 1,00 mm², 1,50 mm², 2,00 mm², 2,50 mm², 4,0 m |
| Espesor nominal | 0,60 mm (de 0,15 mm² a 2,50 mm²), 1,00 mm (de 4,0 mm² a 16,0 mm²), 1,90 mm (de 10,0 mm² a 16,0 mm²), | Construcción | 7/0,18 (0,15 mm²), 20/0,8 (0,50 mm²), 30/0,18 (0,75 mm²), 40/0,18 (1,00 mm²), 30/0,254 (1,50 mm²), 4 |
| Resaltar | 200C Rated Temperature Silicone Wire,600V Rated Voltage Battery Cable,Tinned Copper Conductor High Temperature Cable |
||
Descripción de producto
High Temperature Ultra Flexible Soft Silicone Wire
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
Technical Specifications - UL30045
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)/(Ft) |
|---|---|---|---|---|---|---|
| 0.15 | 7/0.18 | 0.54 | 0.60 | 1.74 | 199.0 | 610/2000 |
| 0.50 | 20/0.8 | 0.92 | 0.60 | 2.12 | 40.1 | 305/1000 |
| 0.75 | 30/0.18 | 1.13 | 0.60 | 2.33 | 24.8 | 305/1000 |
| 1.00 | 40/0.18 | 1.31 | 0.60 | 2.51 | 18.7 | 305/1000 |
| 1.50 | 30/0.254 | 1.60 | 0.60 | 2.80 | 12.5 | 305/1000 |
| 2.00 | 40/0.254 | 1.87 | 0.60 | 3.07 | 8.96 | 305/1000 |
| 2.50 | 50/0.254 | 2.08 | 1.00 | 4.08 | 7.47 | 305/1000 |
| 4.0 | 128/0.20 | 2.9 | 1.00 | 4.90 | 4.70 | |
| 6.0 | 192/0.20 | 3.3 | 1.00 | 5.30 | 3.15 | |
| 10.0 | 379/0.20 | 4.6 | 1.90 | 8.40 | 1.80 | |
| 16.0 | 84/0.4 | 4.5 | 1.90 | 8.30 | 14 | |
| 16.0 | 510/0.20 | 6.0 | 1.90 | 9.80 | 1.15 | |
| 12 | 128/0.4 | 5.5 | 1.90 | 9.30 | 5.53 | |
| 25.0 | 797/0.20 | 7.5 | 2.20 | 11.90 | 0.80 | |
| 0.50mm² | 200/0.4 | 7.0 | 2.20 | 11.40 | 40.1 | |
| 35.0 | 1115/0.20 | 8.8 | 2.20 | 13.20 | 0.60 | |
| 1.00mm² | 279/0.4 | 8.0 | 2.20 | 12.40 | 20 | |
| 50.0 | 1593/0.20 | 10.3 | 2.40 | 15.10 | 0.40 | |
| 2.00mm² | 399/0.4 | 10.3 | 2.40 | 15.10 | 8.78 | |
| 70.0 | 2230/0.20 | 12.0 | 2.40 | 16.80 | 0.30 | |
| 357/0.5 | 12.0 | 2.40 | 16.80 | |||
| 95.0 | 3026/0.20 | 14.0 | 2.40 | 18.80 | 0.20 | |
| 485/0.5 | 14.0 | 2.40 | 18.80 | |||
| 120.0 | 2368/0.254 | 16.0 | 2.40 | 20.80 | 0.17 | |
| 612/0.5 | 16.0 | 2.40 | 20.80 | |||
| 150.0 | 765/0.5 | 17.5 | 2.40 | 22.30 | 0.14 |
Our Products
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
